Rotary Table Feeder
Rotary Table Feeder

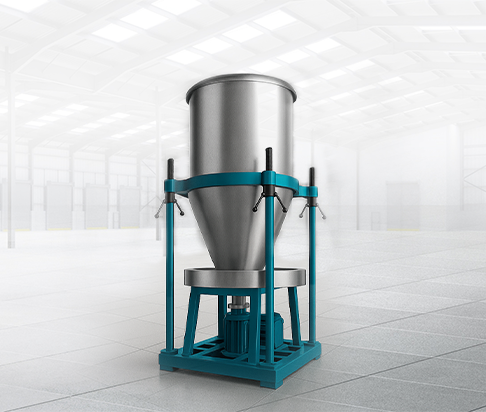

The VIRA Engineering Rotary Table Feeder is designed to discharge bulk materials in a controlled and uniform manner. It is particularly effective for handling sticky, cohesive, or difficult-to-flow powders and granules, ensuring smooth transfer from hoppers/bunkers to process lines.
The feeder consists of a rotating circular table mounted below a feed hopper. Material is evenly spread across the table through a feed collar and discharged using an adjustable plough mechanism into the outlet chute.
Advantages
- Provides uniform, controlled feeding
- Converts batch process into continuous process
- Handles sticky, lumpy, or irregular material easily
- Adjustable feed rate with plough mechanism
- Simple, robust design with low maintenance
Technical Parameters
| Table Diameter | 500 mm – 3000 mm |
|---|---|
| Capacity | 0.5 TPH – 100 TPH |
| Drive | Geared motor with speed variation option |
| Material of Construction | MS / SS 304 / SS 316 |
| Feed Control | Adjustable collar gap & plough settings |
| Discharge Type | Continuous or batch |
| Operating Temperature | Up to 250°C (special design available) |
Applications
-
Sticky powders & difficult-to-handle materials
-
Minerals & ores
-
Fertilizers & chemicals
-
Food & pharmaceuticals
-
Cement, gypsum, lime, coal dust
