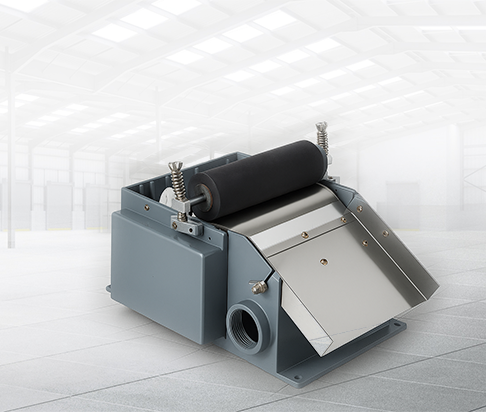

The VIRA Engineering Magnetic Separator is a highly efficient unit for removing ferrous and paramagnetic contaminants from powders, granules, and process streams. Our separators are designed to handle a wide variety of industries — from minerals and chemicals to food and recycling.
Unlike conventional low-intensity magnets, our high-intensity magnetic separators are capable of capturing even fine paramagnetic particles. Depending on process requirements, we manufacture Drum, Roll, Drawer, Chute, Grill, Plate, and Inline Magnetic Separators.
Advantages
- Wide range: Single, Double, and Triple Drum designs
- High-power magnetic roll separators for ultra-fine separation
- Inline & drawer types for easy installation in existing process lines
- High separation efficiency for both ferrous and paramagnetic impurities
- Dust-free and continuous operation
- Easy cleaning & low maintenance
Technical Parameters
| Magnetic Intensity | 1000 – 15000 Gauss (customizable) |
|---|---|
| Drum Diameter | 300 mm – 1200 mm |
| Drum Width | 300 mm – 2000 mm |
| Capacity | 1 TPH – 100 TPH (depends on feed material) |
| Motor Power | 2 HP – 20 HP |
| Material of Construction | MS/SS 304/SS 316 |
| Types | Drum, Roll, Drawer, Grill, Chute, Inline |
| Temperature Range | Up to 250°C (special design up to 450°C) |
Applications
-
Minerals processing
-
Food & grain industries
-
Ceramic & glass industries
-
Chemical & fertilizer industries
-
Plastic & polymer recycling
-
Metal recovery from waste streams
Need Custom Equipment Solutions?
Our expert team can design and manufacture equipment tailored to your specific industrial requirements
