Paddle Mixer (Single & Double Shaft)

Paddle Mixer (Single & Double Shaft)

Paddle Mixer (Single & Double Shaft)

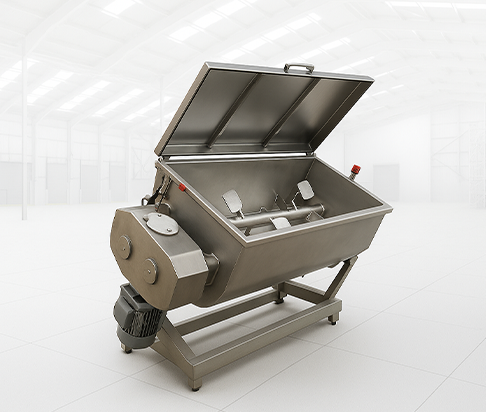

The VIRA Engineering Paddle Mixer is a horizontal mixer equipped with curved paddles mounted on one or two shafts. It ensures turbulent material movement and allows direct liquid addition for coating or binding processes. Available in single shaft or double shaft designs, it guarantees high mixing uniformity in a short time.

Advantages

  • High homogeneity with short mixing time
  • Liquid addition possible during mixing
  • Low operational speed with minimal heat generation
  • Full-length quick discharge gate
  • Rugged gearbox and helical gear design

Technical Parameters

Capacity 200 L – 5000 L
Batch Size 100 kg – 2500 kg
Motor Power 5 HP – 60 HP
Mixing Time 2 – 5 minutes per batch
Shaft Type Single / Double

Applications

  • Animal feed & agriculture
  • Fertilizers & agrochemicals
  • Bio-waste treatment & tar mixing
  • Pharmaceuticals & chemicals
  • Minerals, paints & polymers
