Batch Type Ball Mill

Batch Type Ball Mill

Batch Type Ball Mill

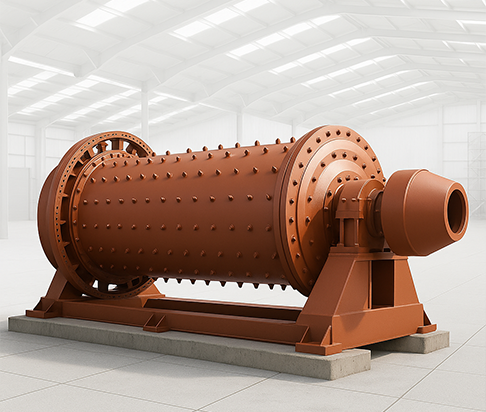

The VIRA Engineering Batch Type Ball Mill is ideal for small to medium-scale production where continuous operation is not required. Designed for mixing, grinding, and homogenizing, it can handle both wet and dry materials.

The rotary drum shell is fabricated from heavy-duty steel with lining options such as rubber, ceramic, or manganese based on material requirements. Grinding media and additives are introduced through a manhole port, ensuring homogeneous mixing during operation.

Advantages

  • Versatile – suitable for both wet and dry grinding
  • Uniform fineness and controlled particle size
  • Multiple liner & grinding media options
  • Easy maintenance and cleaning via manhole port
  • Suitable for batch operations requiring precise control

Technical Parameters (Standard Range)

Feed Size up to 20 mm
Output Size 80 – 1000 mesh (depending on milling time)
Capacity 25 kg – 10 TPH (per batch)
Motor Power 3 – 200 HP
Mill Diameter 500 mm – 2400 mm
Mill Length 500 mm – 4000 mm

Applications

  • Ceramics & pigments
  • Dyes & paints
  • Minerals & ores
  • Chemicals & fertilizers
  • Laboratory & pilot plant testing
