Hammer Mill
Hammer Mill
Hammer Mill

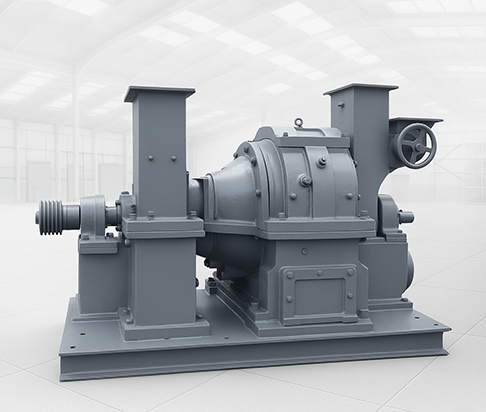

The VIRA Engineering Hammer Mill is a versatile crushing machine used for grinding and pulverizing materials into fine sizes. It operates on the principle of impact crushing, where hammers mounted on a rotating rotor strike the feed material against wear-resistant liners and perforated screens.
Advantages
- Easy screen change for varied output sizes
- Cold and silent running with minimum vibration
- Dust-free operation with optional dust collector
- Long life and minimal maintenance
- Flexible for multiple industrial uses
Technical Parameters (Standard Range)
| Feed Size | up to 100 mm |
|---|---|
| Output Size | 0.5 – 20 mm (screen controlled) |
| Capacity | 0.5 – 30 TPH |
| Rotor Speed | 1500 – 3000 RPM |
| Construction | Mild Steel / Stainless Steel (as required) |
Applications
-
Crushing & grinding
-
Food & agro industries
-
Recycling industry
-
Cement
-
chemical
Features & Construction
- Heavy-duty mild steel or stainless steel body
- Grinding chamber lined with serrated wear plates
- Dynamically balanced rotor with swing hammers
- Variety of screen sizes for desired output
- Easy-to-replace reversible hammers/blades
