Rotary Air Lock Valve
Rotary Air Lock Valve

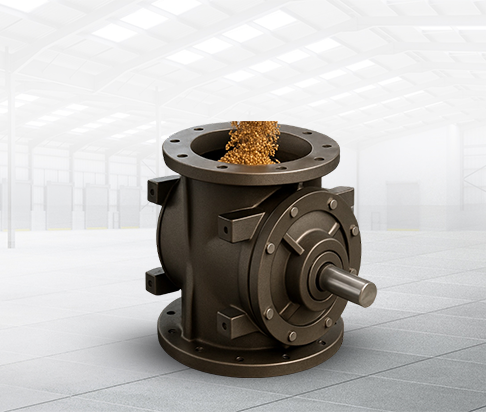

The VIRA Engineering Rotary Airlock Valve is a precision-engineered feeder designed to control the flow of bulk solid materials between two different pressure zones while maintaining an efficient airlock seal.
It combines the functions of feeding, metering, and sealing, ensuring smooth handling of dry, free-flowing powders, granules, crystals, or pellets. The valve features an impeller mounted directly on the gearbox shaft with specially designed inlet ports that create a scissor-cutting action for smooth operation, minimizing wear and extending equipment life.
Advantages
- Maintains optimal airlock between pressure differentials
- Prevents product leakage and contamination
- Longer bearing & impeller life due to cutting-edge design
- Handles abrasive, sticky & fine powders efficiently
- Continuous, uniform material feeding
Technical Parameters
| Valve Sizes | 150 mm – 600 mm |
|---|---|
| Capacity | 1 TPH – 100 TPH (depends on bulk density) |
| Rotor Speed | 5 – 30 RPM |
| Drive | Gearbox with flange-mounted motor |
| Material of Construction | Cast Iron / Mild Steel / SS 304 / SS 316 |
| Seal Type | Lip seals, gland packing, or mechanical seals |
| Operating Pressure | Up to 1.5 bar (customizable) |
| Temperature Range | Up to 250°C (special design up to 450°C) |
Applications
-
Cement, fly ash, gypsum, lime
-
Food & grain industries (sugar, flour, cereals, coffee)
-
Minerals & ores
-
Plastics & chemicals
-
Dust collection systems & pneumatic conveying
