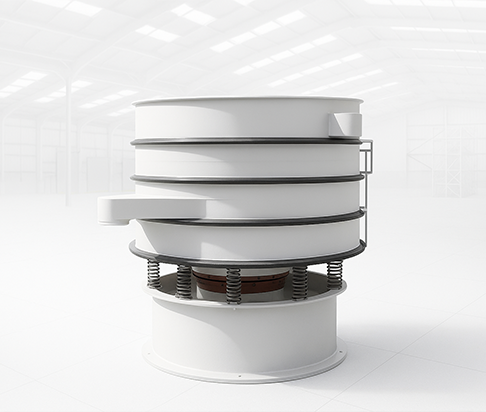

The VIRA Engineering Gyro Screen (also known as Vibro Sifter or Shifter) is a circular gyratory screen separator that provides precise grading and separation for powders, granules, and liquids. It utilizes a special vibrator motor with adjustable eccentric weights, creating multi-plane vibrations (horizontal, vertical, and circular) that enable accurate screening with minimal screen clogging.

Multiple screen decks can be mounted one above the other, allowing separation into several fractions in a single operation. Its robust design and high screening accuracy make it ideal for industries requiring consistent particle size distribution.

Advantages

  • High separation accuracy and consistent performance
  • High throughput per unit screen area
  • Compact and robust design with low power consumption
  • Quick screen change with tension rings
  • Minimal screen blinding and clogging
  • Suitable for dry and wet screening applications

Technical Parameters (Standard Range)

Screen Diameter 18” – 72” (450 mm – 1800 mm)
Capacity 50 kg/hr – 5 TPH (material dependent)
Screen Decks 1 – 4 layers
Separation Size 20 µm – 25 mm
Motor Power 0.25 HP – 5 HP
Vibration Multi-plane, adjustable (horizontal, vertical, circular)
Material of Construction MS / SS304 / SS316 (based on application)

Applications

  • Food & agro products
  • Pharmaceuticals & nutraceuticals
  • Chemicals, dyes, pigments & fertilizers
  • Minerals & metal powders
  • Ceramics, polymers, & paints
  • Paper & magnetic materials
